3d fence

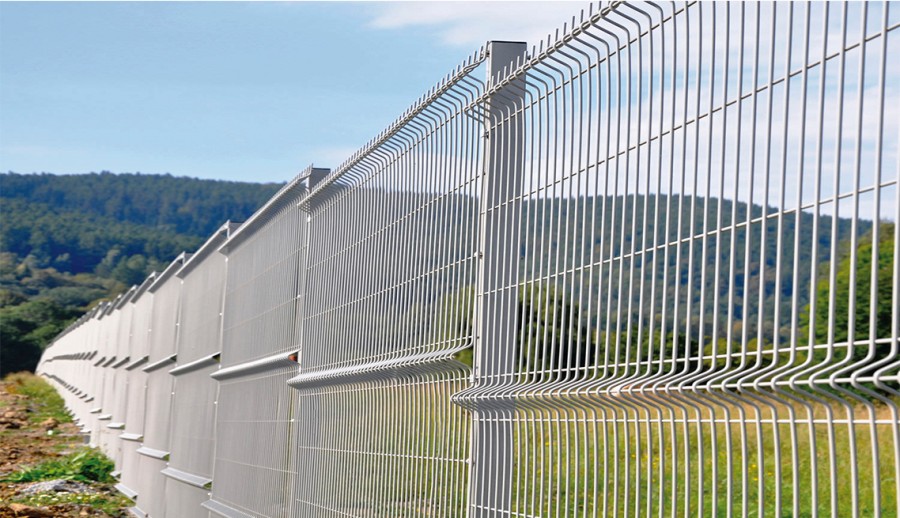

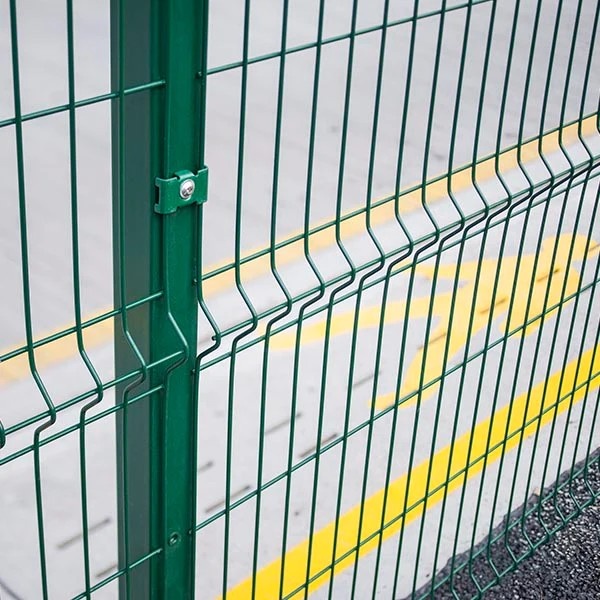

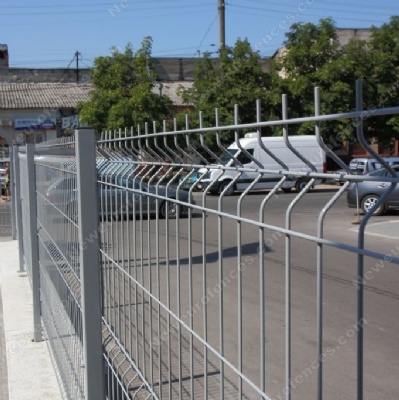

A 3d fence panel is a type of welded wire mesh that features V-shaped strengthen bending curves. This modern wire fencing system is not only aesthetically pleasing with its elegant appearance but also provides enhanced security. The panels have a stylish and contemporary design with spacing specifications of 50mm x 150mm or 50mm x 200mm, offering great visibility while blending into the environment. Therefore, this fence is widely used in airports, park lawns, zoos, pool lake perimeters, residential buildings, hotels, etc.
The 3d fence is an affordable wire system that delivers excellent quality and strength at a low cost. The system comprises panels in various heights supported by multiple types of posts, each with a specific fixing system. All types are available with adapted accessories and a wide range of swing and sliding gates.

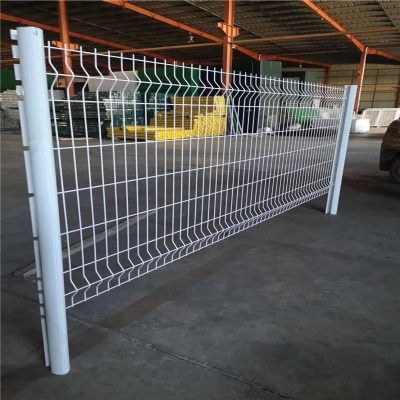

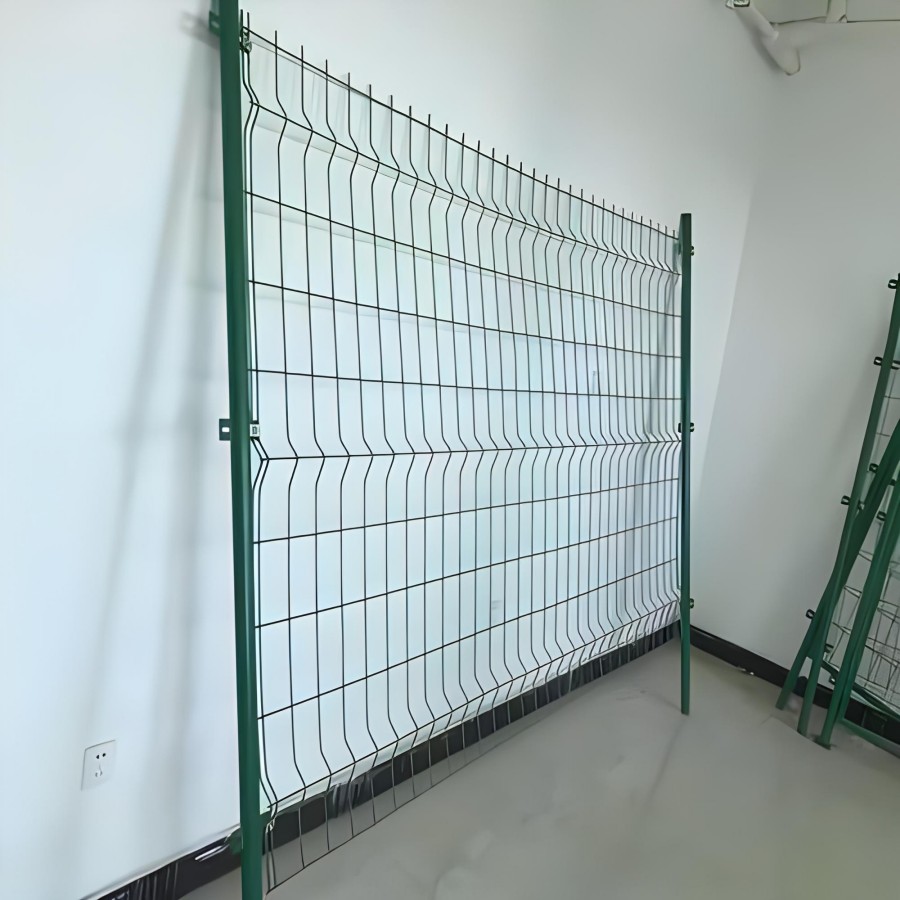

Welded Mesh Fence Panel

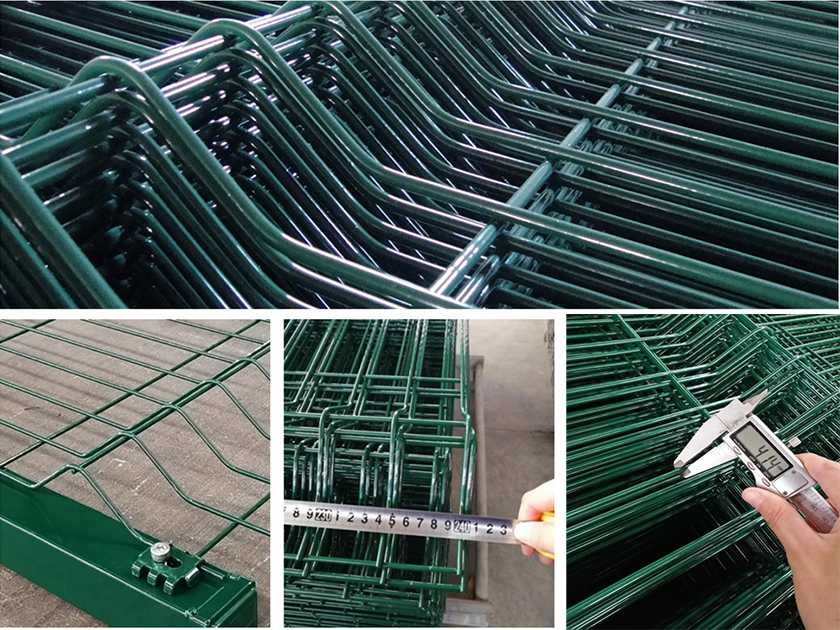

The panels are made of high-quality low carbon steel wire or galvanized wire. With rectangular meshes, heavy wires, and horizontal curves, they guarantee a very high level of rigidity. A special layer is applied after galvanization to ensure a total bond of the PVC topcoat. State-of-the-art powder coating technology provides an extra-long life and allows for a large choice of color finishes to suit your project. The panels come in various heights to meet different levels of security needs.
Specification of 3d welded mesh fence panel
Mesh Size
50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire Diameter
3.0mm/3.5mm/4.0mm/4.5mm/5.0mm
Panel Width
2000mm/2500mm/2900mm
Panel Height
630mm/830mm/1030mm/1230mm/1530mm/1730mm/1830mm/2230mm/2430mm

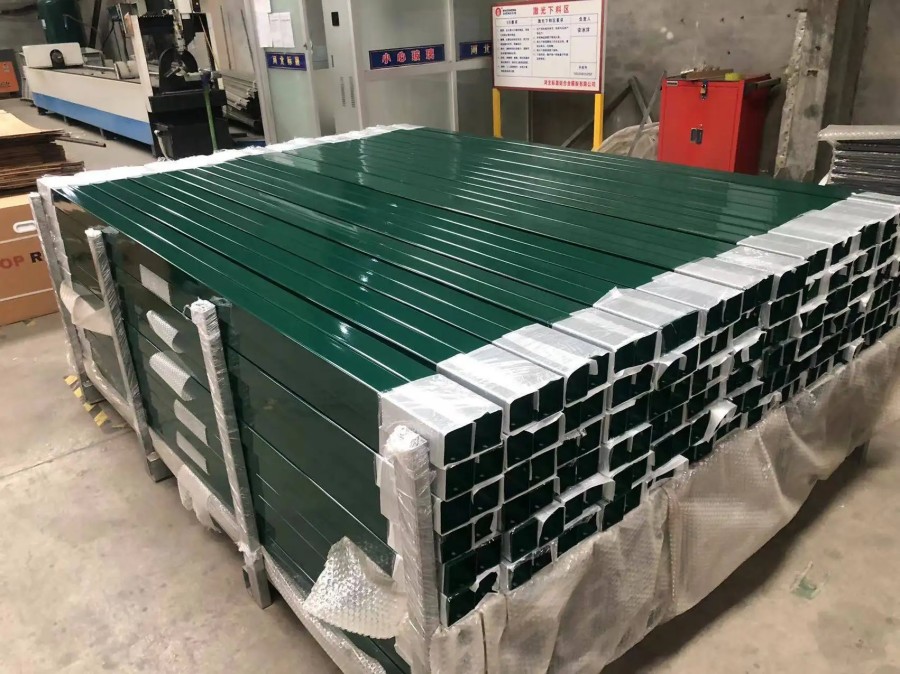

Rectangle Post
40×60mm
Square Post
40*40mm/60x60mm/80x80mm
Peach post
50x70mm/70x100mm
Color
green/grey /white/black(All RAL color can be customized)
Surface Treatment:Hot Dipped Galvanized , Galvanized +Powder Coated , PVC coated , Painted
Product specifications can be customized according to your needs

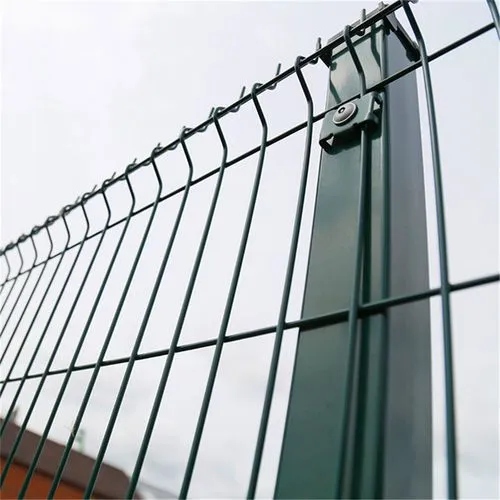

3d Fence Panel Posts
You can choose from different posts, like metal or wood, to match your style. They are easy to install, which saves time. This makes fence panels a smart choice for homes, businesses, and other places that need a fence that is both attractive and functional. Here are some common types of fence posts often used with these fencing systems:

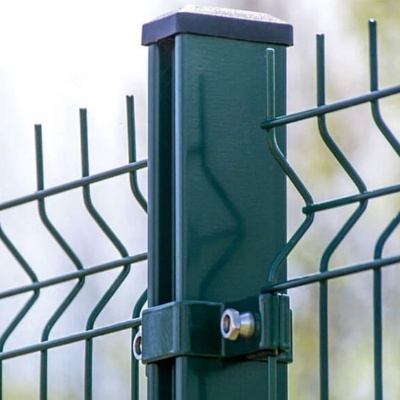

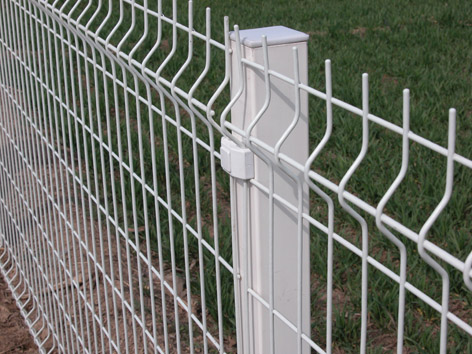

Square post

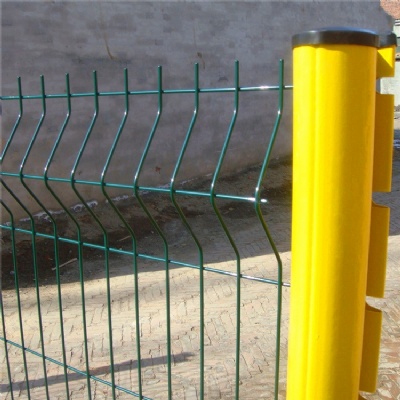

Round post

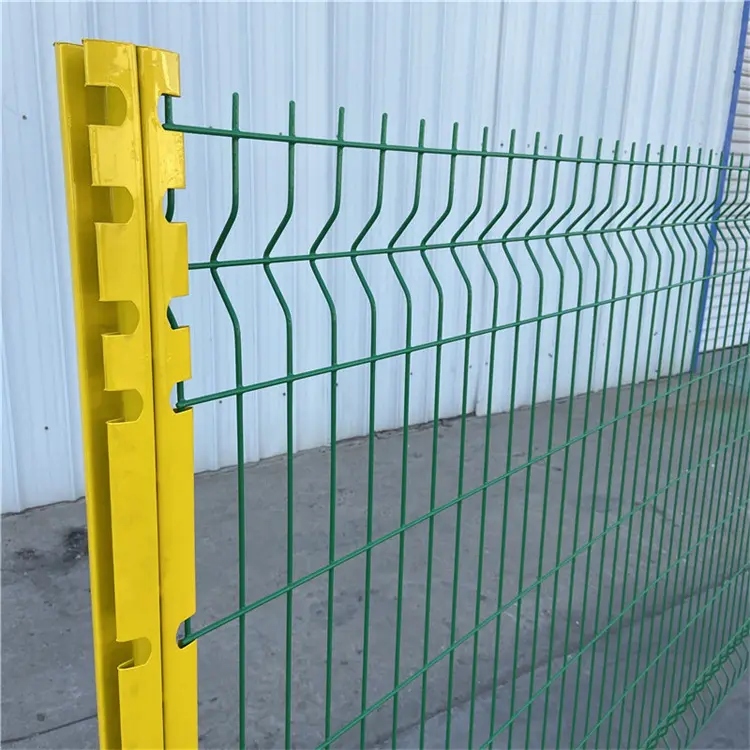

Peach post
